SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Material: Plastic

Origin: Mainland China

Product Type: Heating & Temperature Control

Require Food Contact: No

Thermometer: Home Brewing

Wireless: DIY iSpindel Hydrometer

Contact us to get the operation manual.

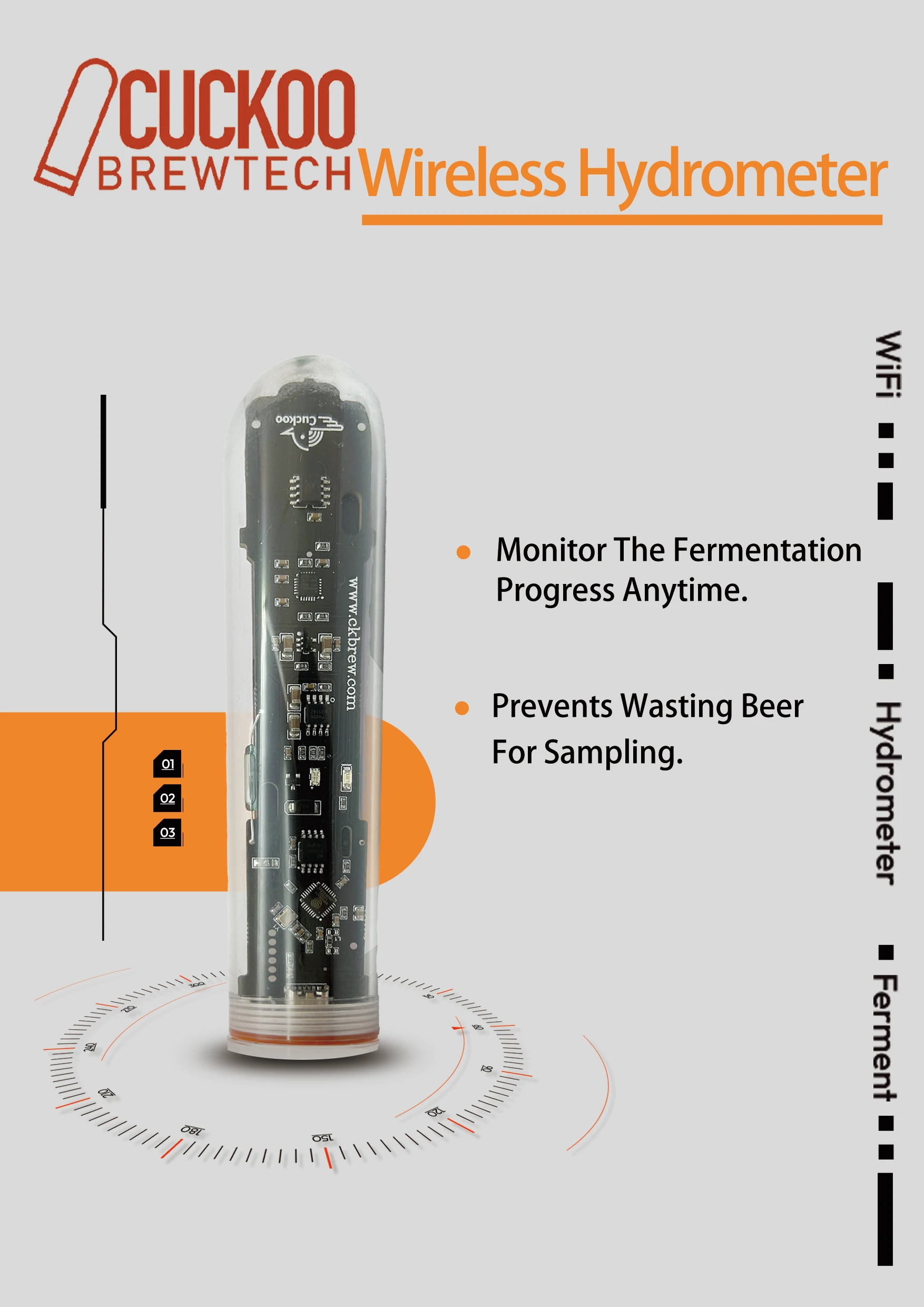

iSpindel Wireless Specific Gravity Meter Instructions for Use

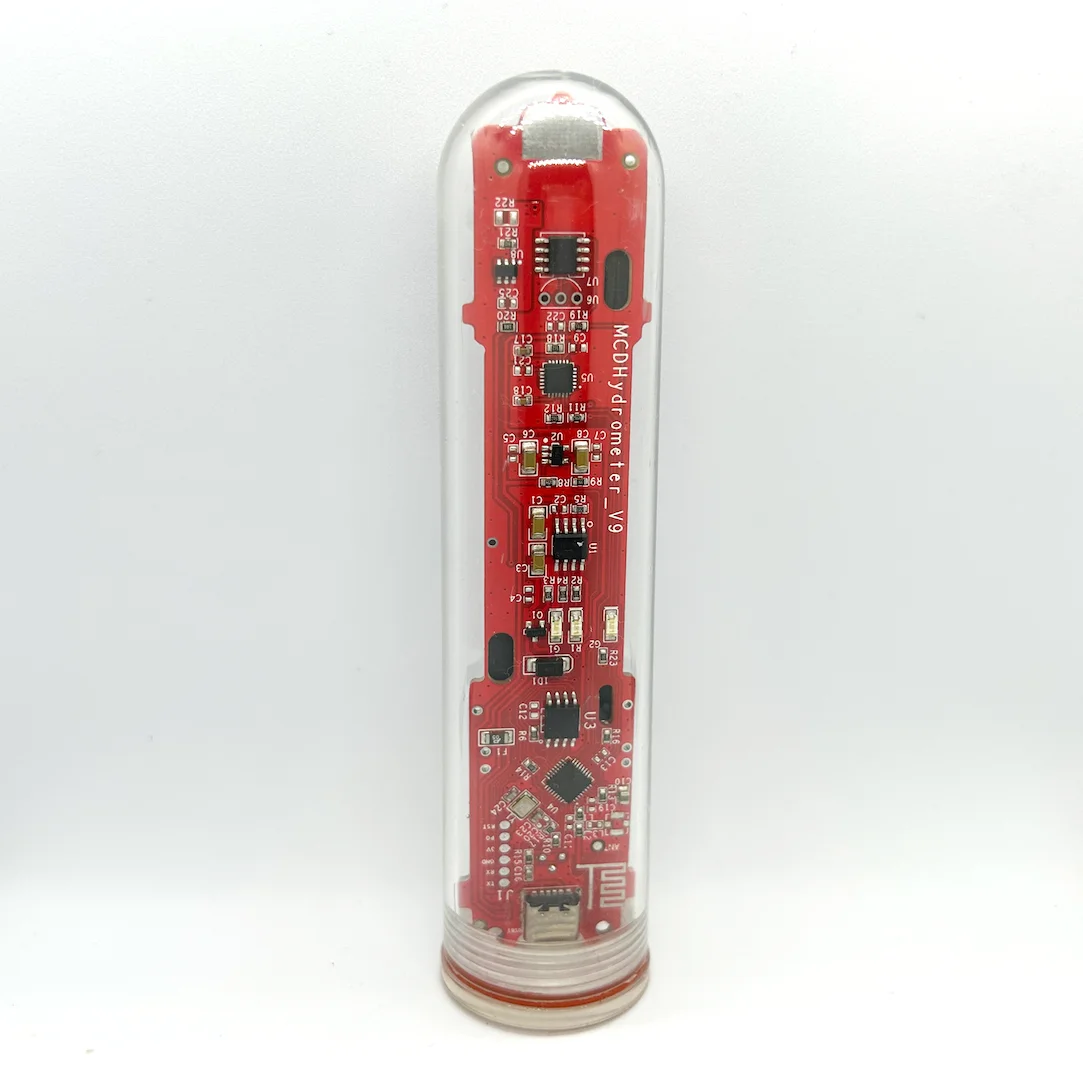

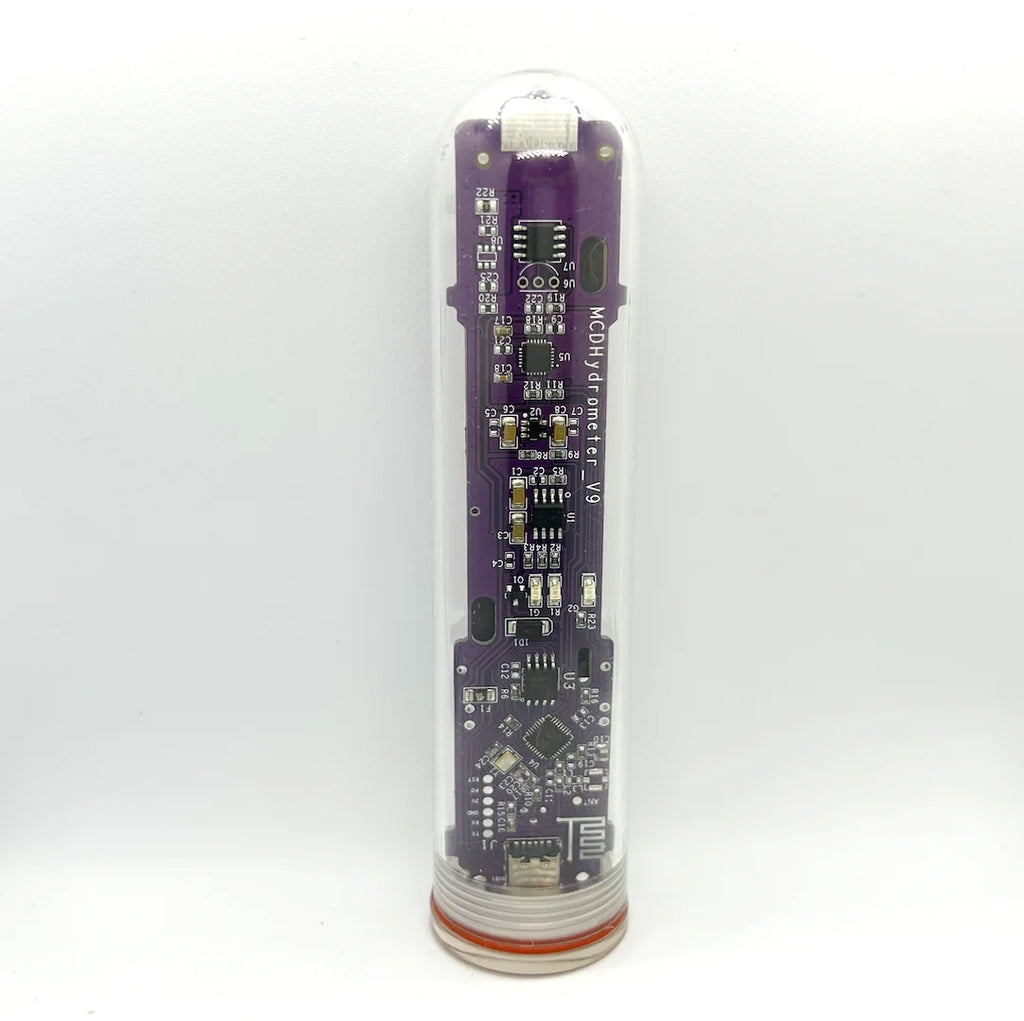

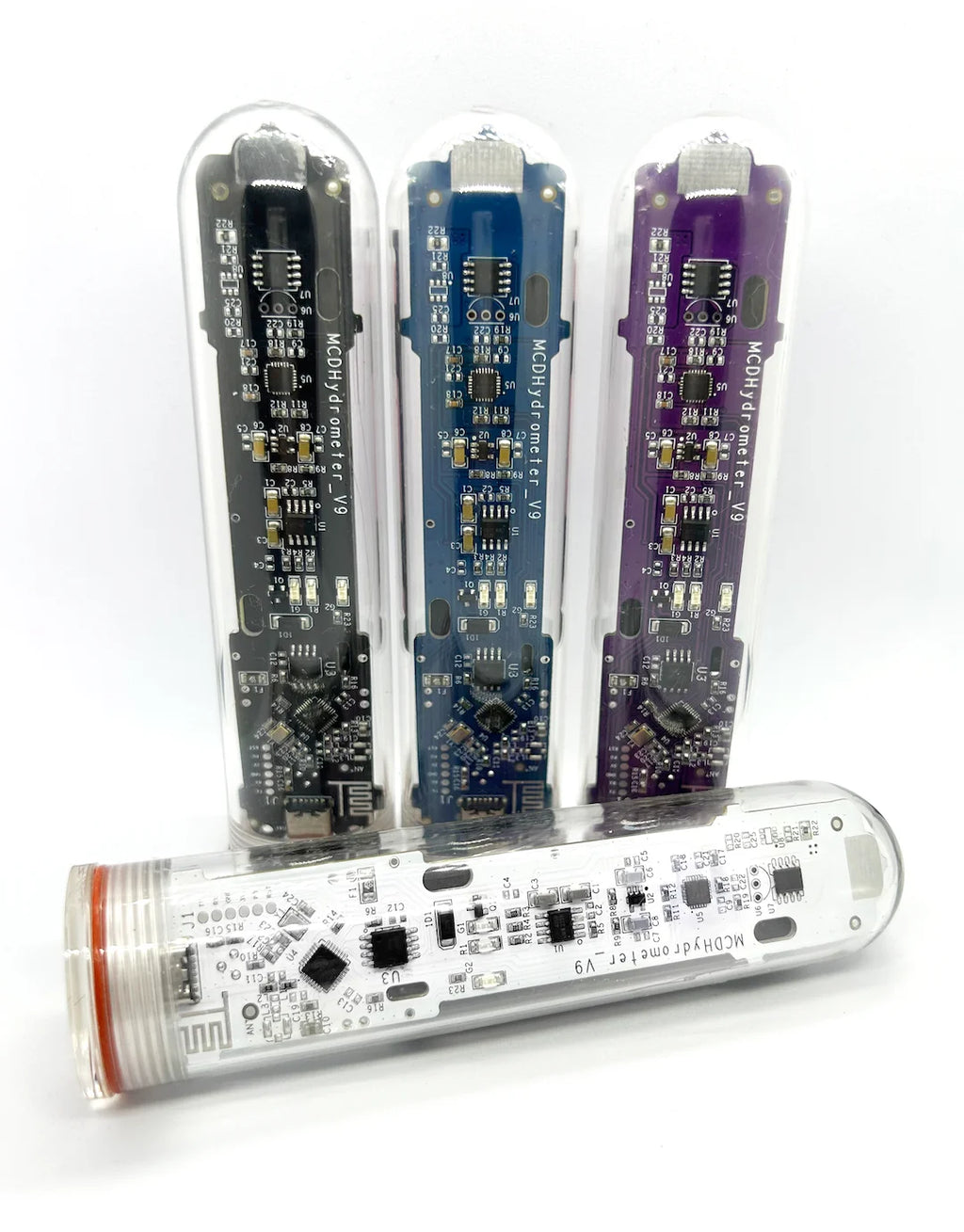

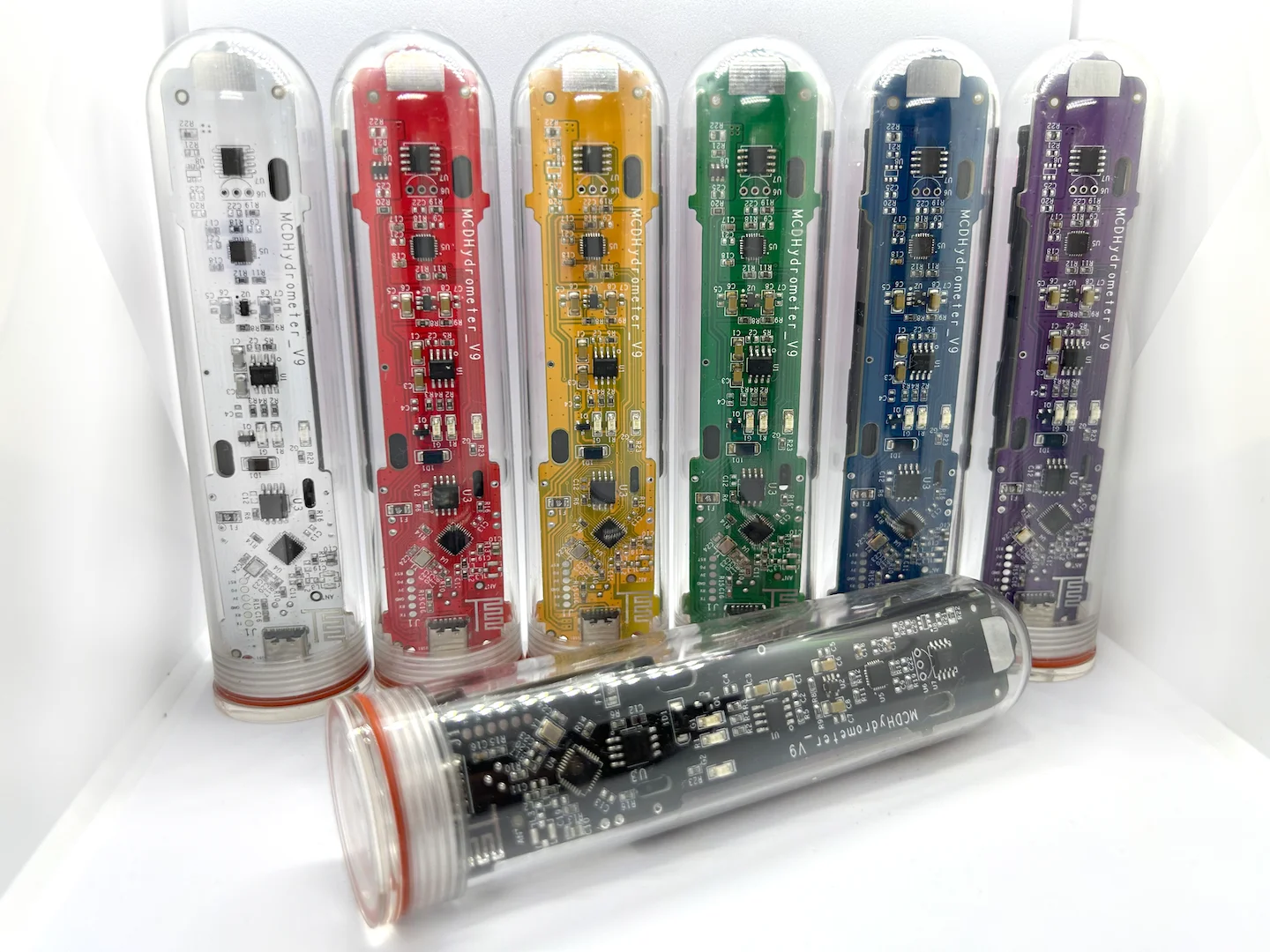

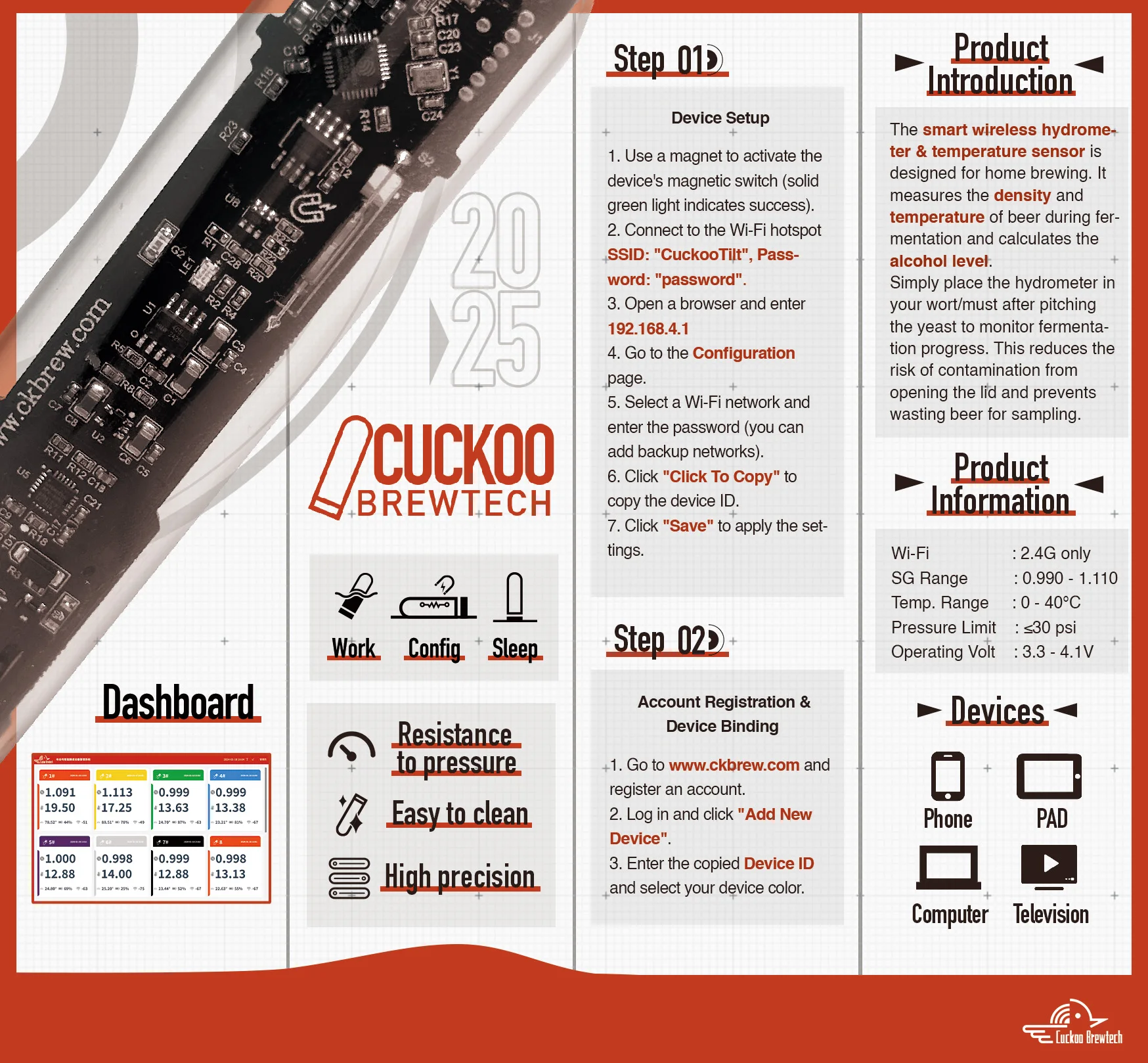

The iSpindel Smart Wi-Fi Tilt Specific Gravity Meter/Temperature Sensor is designed to help us measure density and temperature during beer fermentation.

Simply place the hydrometer in your wort and use it to monitor the fermentation process as you pitch your yeast.

Simply place the hydrometer in your wort when you pitch your yeast to monitor the fermentation process and minimize the risk of opening caps and getting infections, or wasting your precious beer on sampling. The device

The device sends us measurements over a period of time we indicate to our configured network via Wifi using the iSpindel

Using iSpindel's free apps and online tools (e.g. BrewSpy, BrewFather, Grainfather, Craftbeerpi, etc.), you can monitor your fermentation online.

Using iSpindel's free apps and online tools (e.g. BrewSpy, Grainfather, Craftbeerpi, etc.), you can monitor the fermentation process online and control equipment such as beer heating mats in order to keep tight control on fermentation temperatures. Receive

Do not drop the iSpindel directly into wort or water, as the lid is left unscrewed prior to shipment. The inside of the lid has been fitted with a sealing

The lid has been sealed with a 15 psi seal.

The battery is a genuine Panasonic (NCR18650BD) lithium battery with a full charge of 4.2V and a minimum operating voltage of 3.3V.

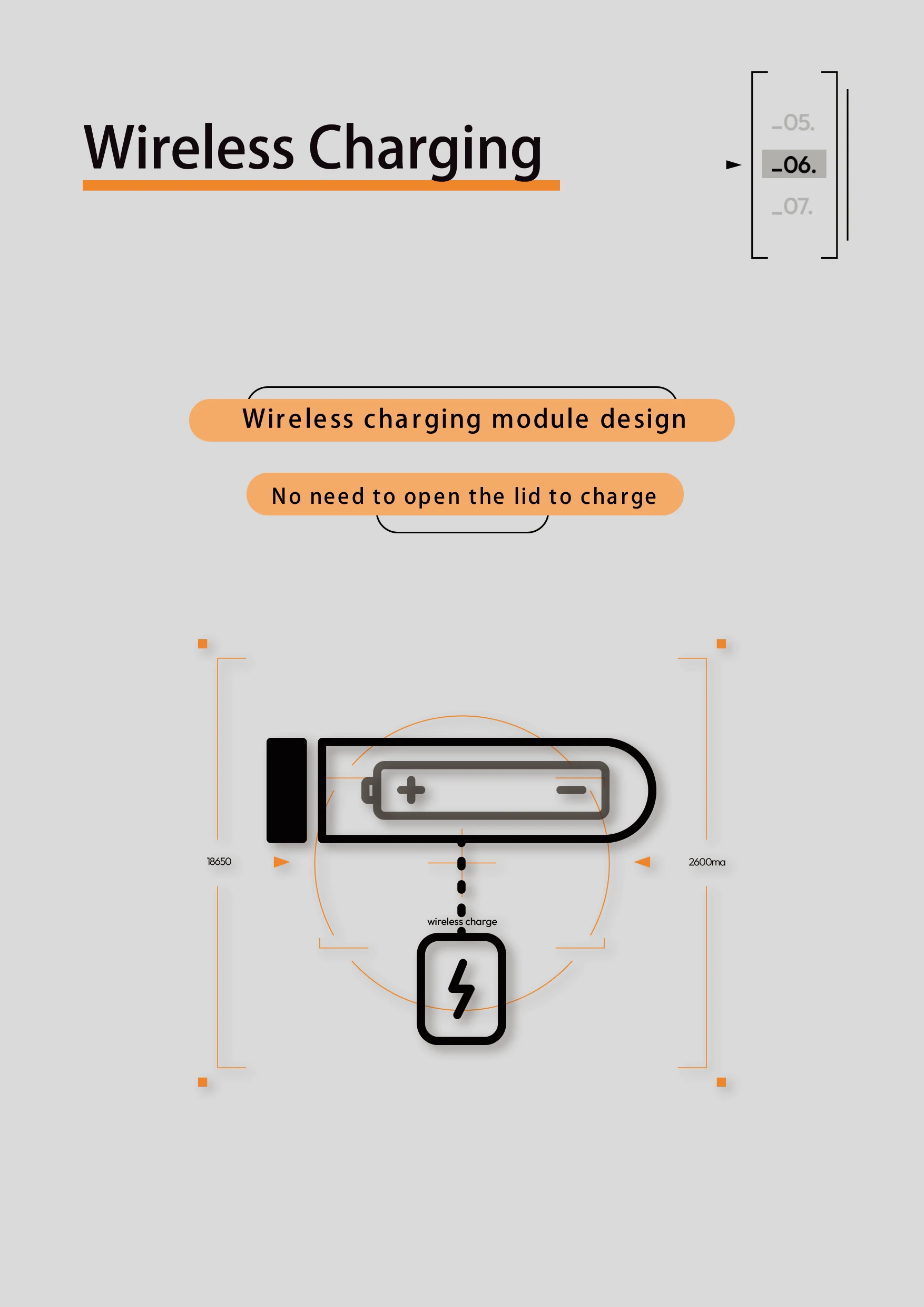

With a 30-minute renewal interval, the battery life can reach nearly 3 months! Charging is via a TYPE-C USB port, using a 5V-1A charger. Red light is charging, blue light is fully charged. (Do not use non-genuine batteries. (Do not use non-genuine batteries as there is a risk of fire)

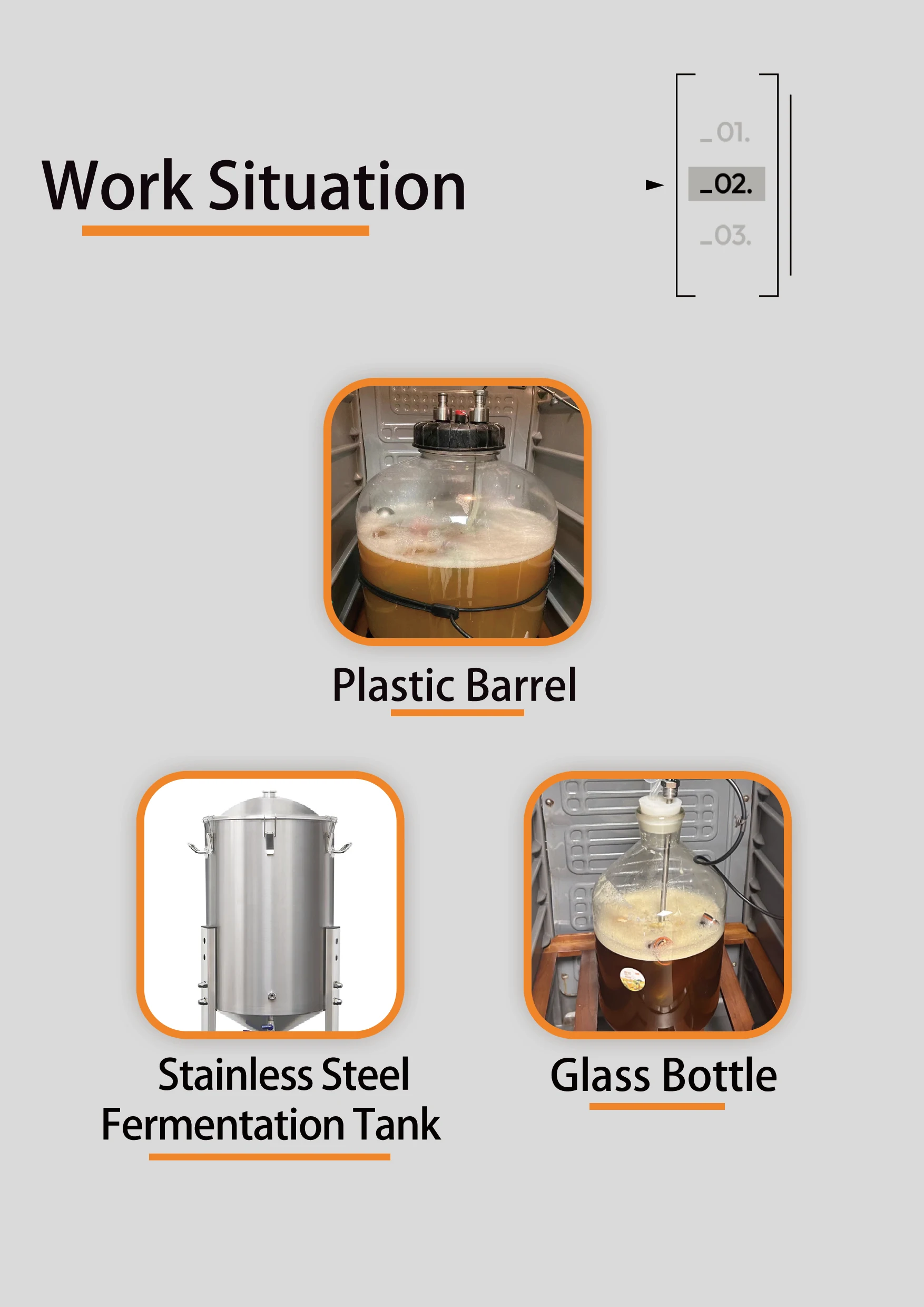

l iSpindel is suitable for homebrewing equipment, PET and glass fermentation buckets can transmit signal well, single layer stainless steel fermentation tanks will have weak signal, it is recommended to use the iSpindel for homebrewing equipment.

Single layer stainless steel fermenter will have weaker signal, we suggest to add a Xiaomi signal amplifier next to the fermenter.

l Frequently Asked Questions

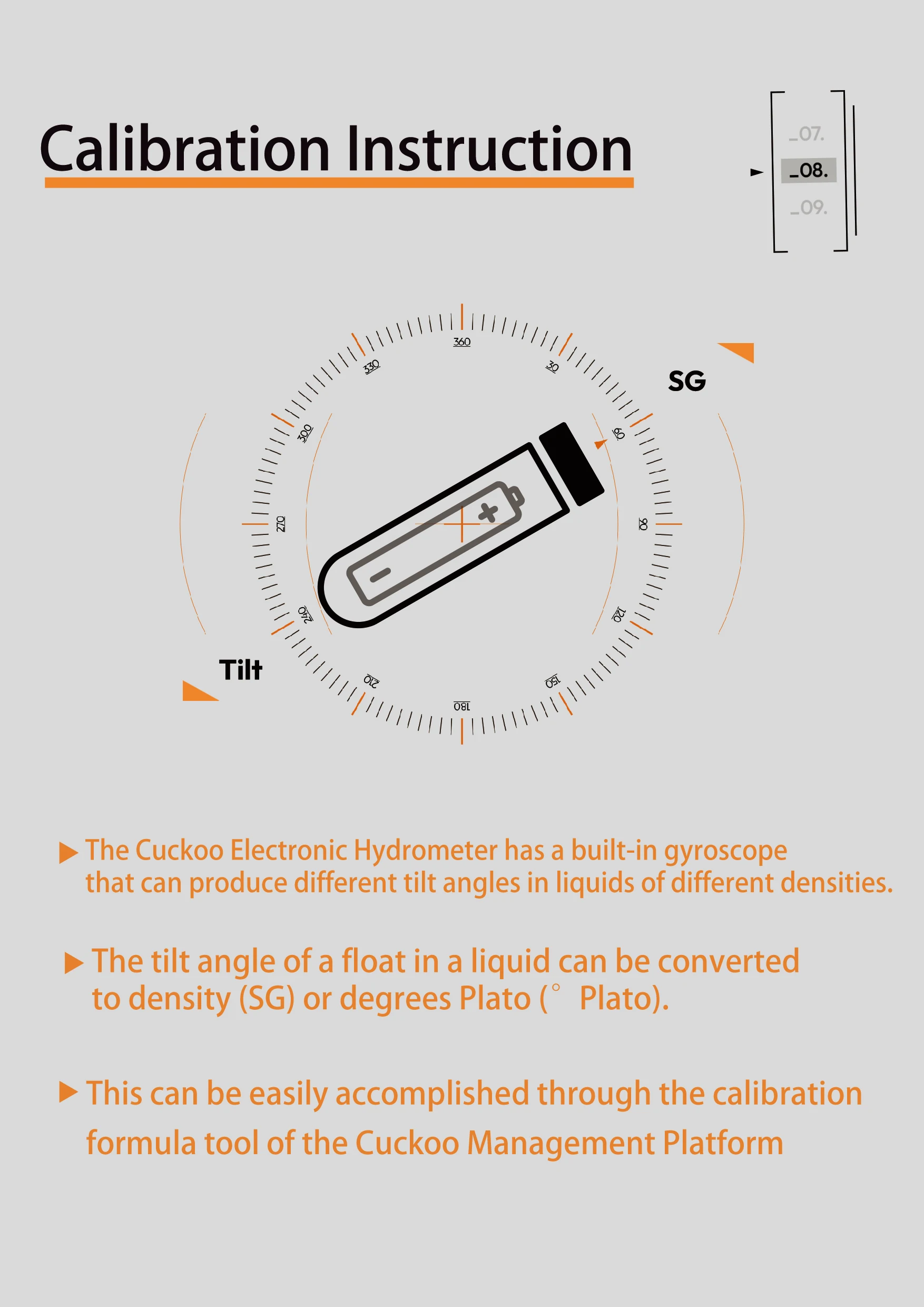

1、 Measurement accuracy

iSpindel is suspended in the liquid by tilting the angle of the physical way of measurement, will be affected by objective factors, but the error is generally within 0.00%.

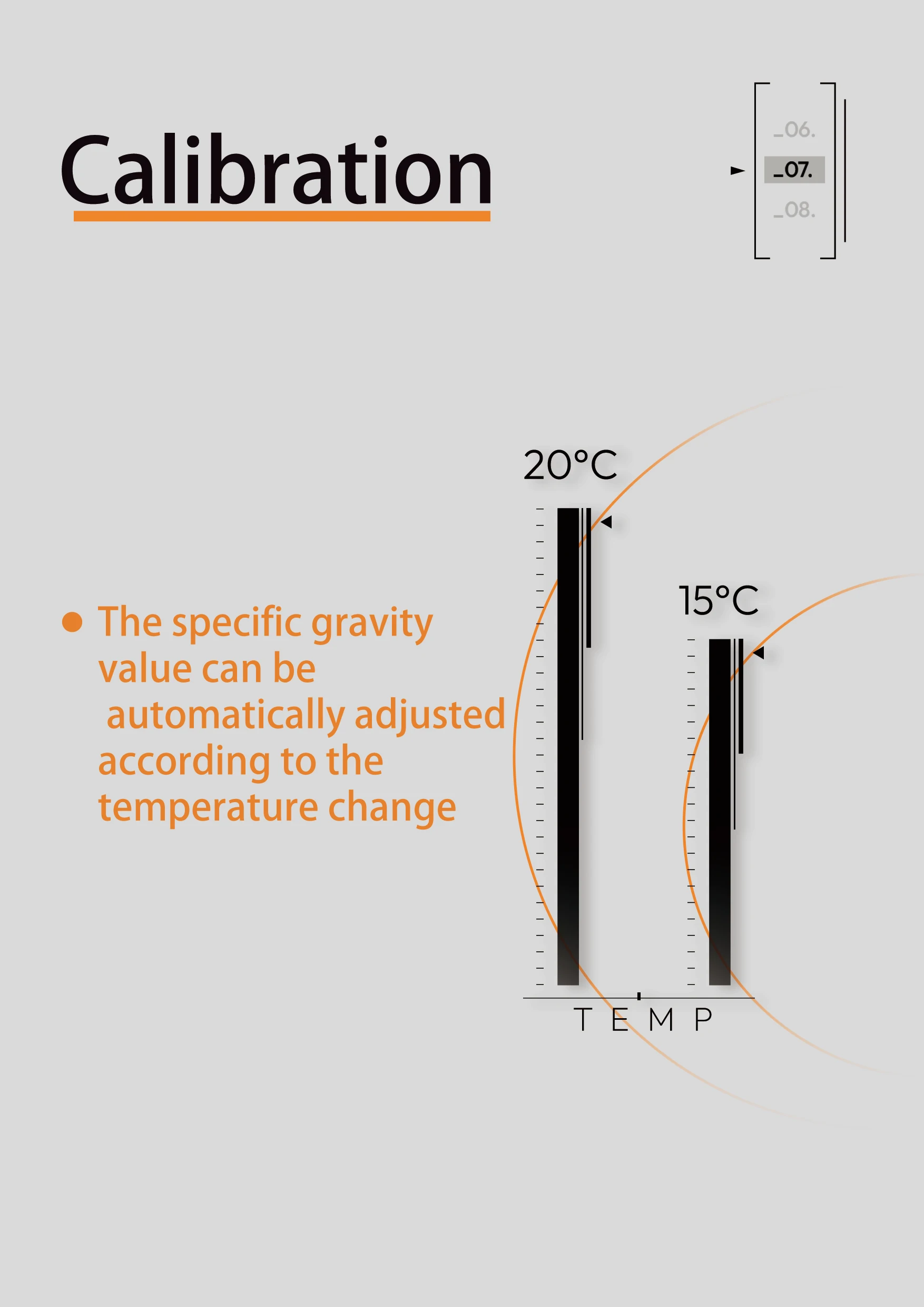

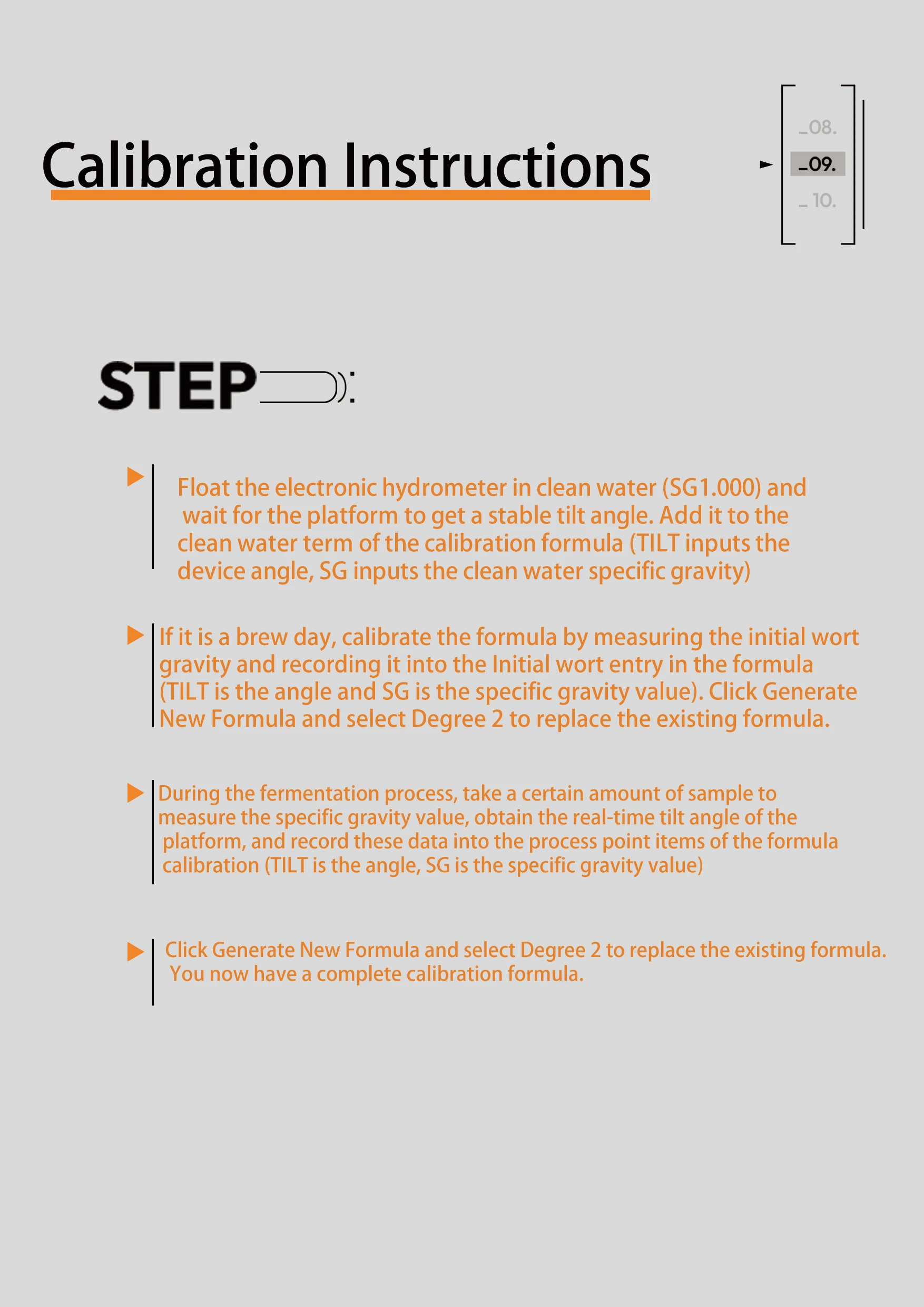

However, the error is generally within 0.003, and can be reduced to within 0.001 by calibrating with sugar water. The first time you use it, if the error is large, it is recommended that you use it

The first time you use it, if the error is big, we suggest you to calibrate it, after successful calibration, you don't need to calibrate it every time for normal use.

2. How long does a full charge last?

iSpindel sends data through Wi-Fi, when the signal is good, it uses low power to send data, and when the signal is poor, it will send data repeatedly with high power.

When the signal is good, iSpindel sends data with low power, but when the signal is bad, it sends data repeatedly with high power, which leads to double power consumption. Measurement of the full state of power, signal -60 or less.

900 seconds to update a data, can be used for more than 3 months.

3、 Can stainless steel canisters be used?

Stainless steel will shield most of the WiFi signals, the actual test of 200L stainless steel fermentation tanks placed on the tank of a

WiFi signal amplifier is placed on the tank of 200L stainless steel fermenter, and it can receive signals normally.

4、 Is there any Chinese software?

There are various software options, and all of them can provide meaningful data observation and use. Currently, BrewSpy is available in Chinese and BrewFater in Chinese.

BrewSpy is currently available in Chinese, and BrewFater is available in Chinese, but this is limited by the internet environment.

l Notes:

1. Try not to change the structure and weight of the iSpindel, and try not to move the board when charging, if the specific gravity is not accurate, the

If the specific gravity is not accurate, it will need to be recalibrated to solve the problem.

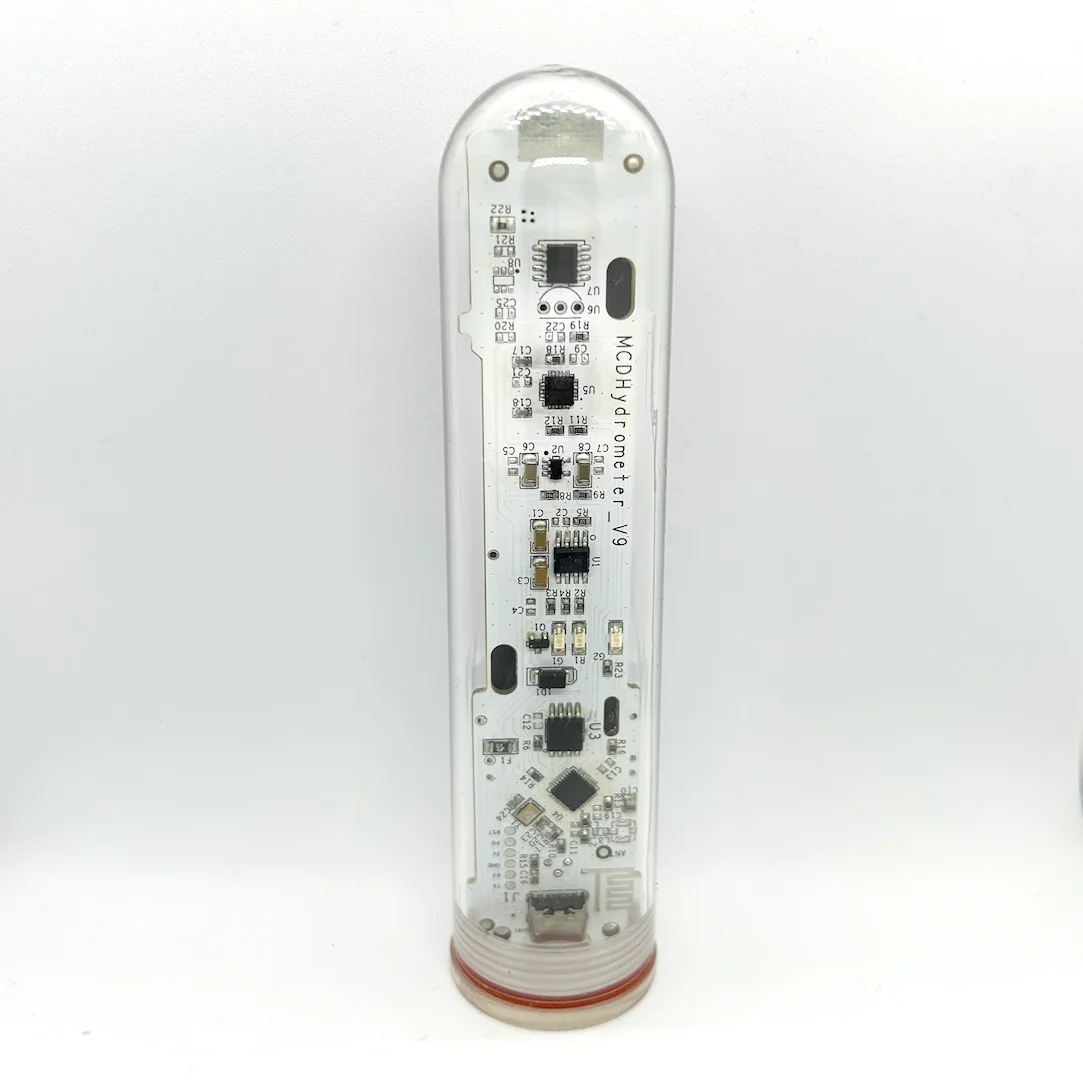

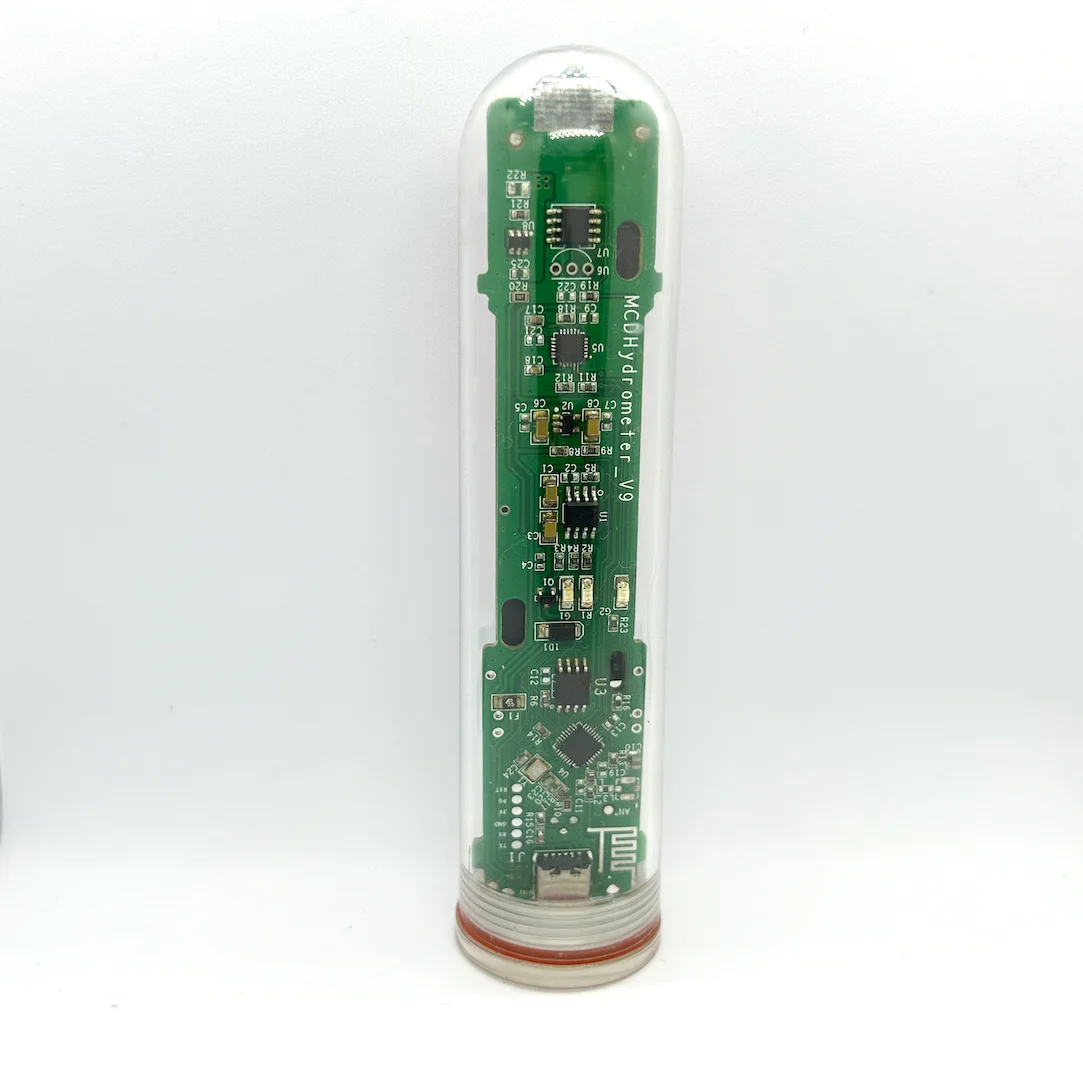

2. Before each use, the circuit board should be pressed firmly to minimize the deviation of specific gravity value.

3、 The iSpindel does not support Chinese WI-FI name for the time being.

4、 iSpindel needs to be connected to its own WI-FI, if the signal is not good, you need to add a WI-FI signal amplifier.

5. The existing software can only connect to one device for free, if you want to connect to more devices, you need to upgrade to the professional version.

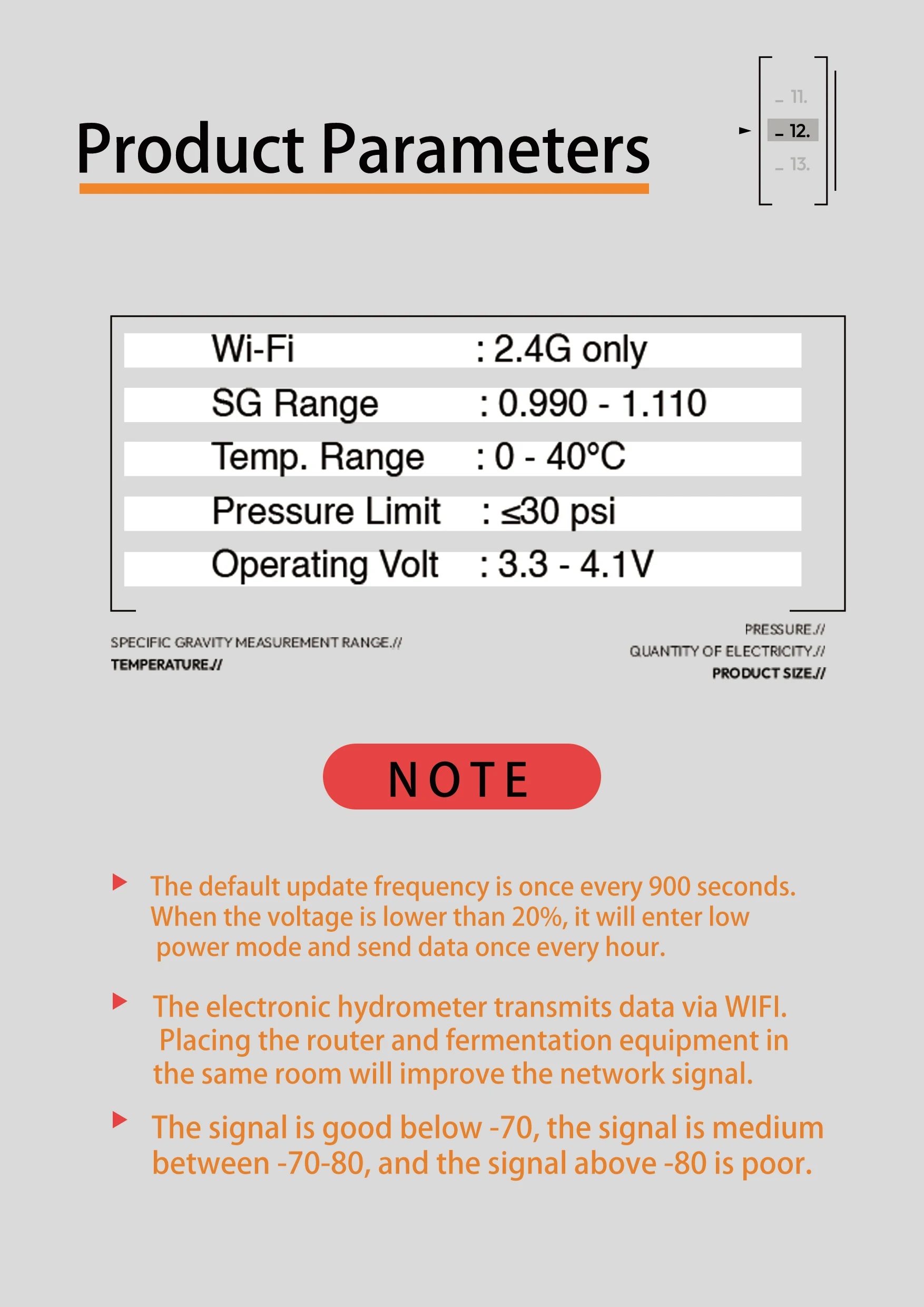

6、 Specific Gravity Measurement Range(SG):0.990-1.120

7. Temperature range: -5°C-40°C.

8、 . Pressure range:20PSI

l Use process:

1. Charge the iSpindel after receiving it.

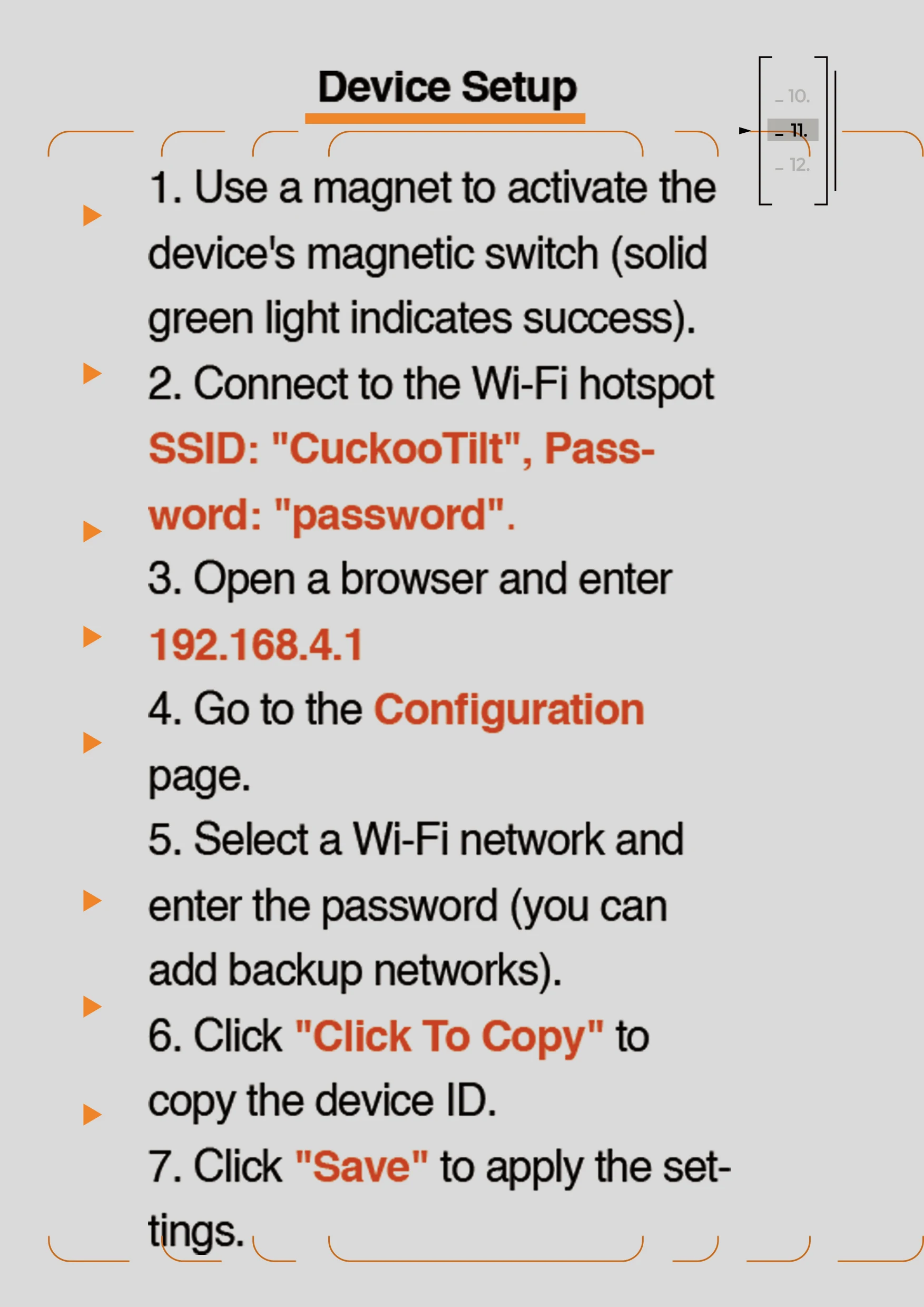

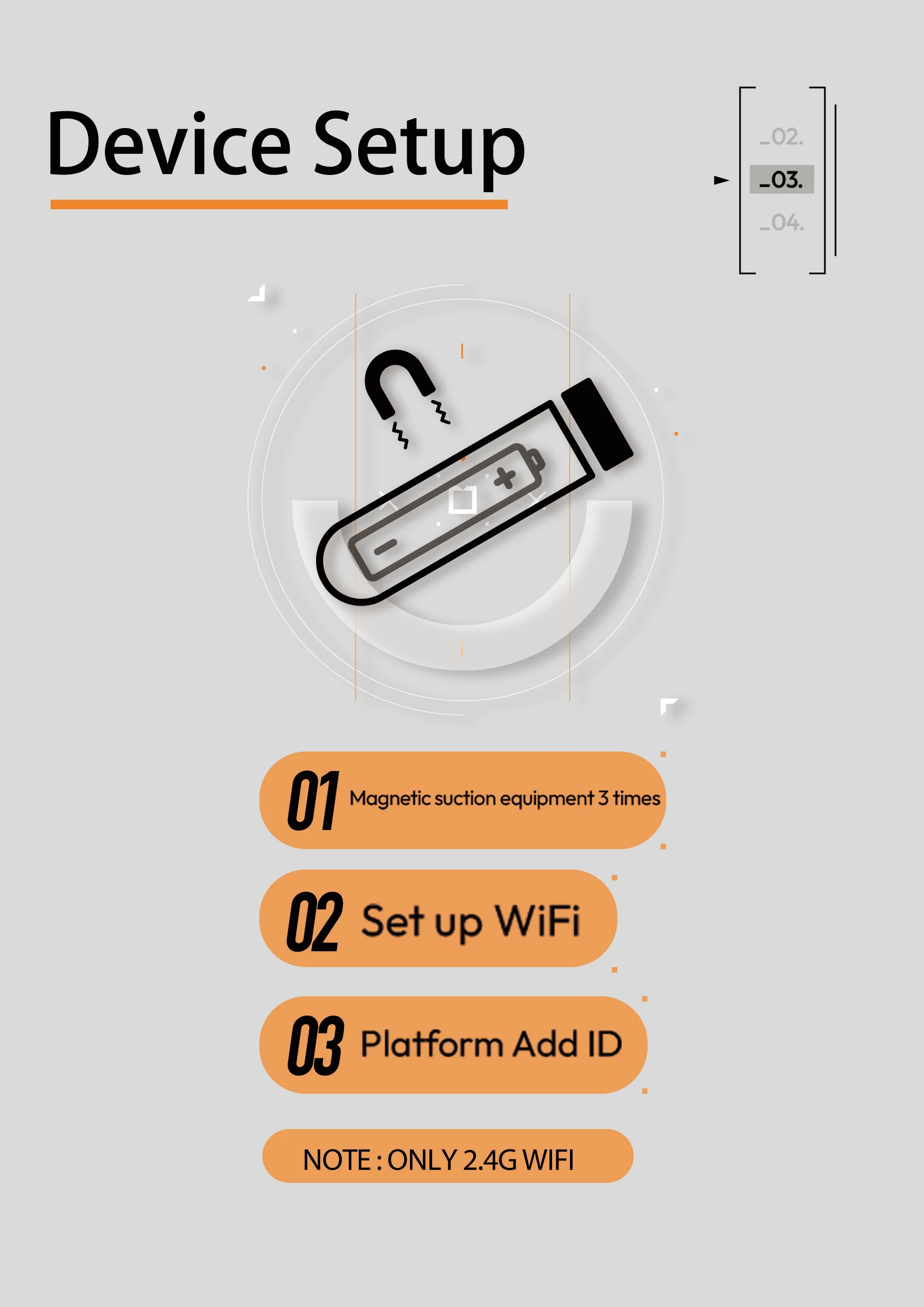

2、Set up the iSpindel. 3、Let the iSpindel float on the water.

3、Let the iSpindel float in the water and observe whether the signal and power are normal. 4、Sanitize the iSpindel when you use it.

4、Sanitize the iSpindel and put it into the wort when you use it.

5、Turn on the distribution recipe after putting in the yeast, so as to avoid the curve changing too much.

6、Stop the graph in time at the end of fermentation, this can avoid the curve changing too much

7、Remove the hydrometer and clean the cap and mouth of the bottle.

• Designed for home brewing.

• Instantly check the specific gravity and temperature of your brew while it's fermenting.

• Don't have to open your fermenter or take a sample for a SG or temp reading.

• Compatible with Apple iPhone/iPad or Android smartphone/tablet or Tilt Pi. Most Bluetooth 4.0+ devices will work with the iSpindel hydrometer.
